Heat exchanger tube angle fillet welding machie GTAW welding

Model: TTS-30

Application:

This welding head is a specially designed TIG welding head to making tube to tubesheet welds,which is suitable for carbon steel, stainless steel, mainly for protruded tube, flush tube and indented tube connection with or without wire feeding.

For welds requiring filler wire addition, an optional wire feeder can be mounted on the weld head. A standard wire spool, mounted directly on the Head, provides precise and positive wire feeding, not possible with floor-mounted feeders.
These weld Heads bring the productivity and repetitive precision of machine welding to the fabrication and repair of steam generators and heat exchangers.
This machine is widely applied in

• Tublar Heat Exchanger tube welding
• Boiler Tube to Tube Sheet Welding
• Protruding tube Welding
• Flus Tube Welding

Features

• Expandable pneumatic mandrel for easy positioning
• High precision with fast and accurate performance, suitable for small heat exchanger
• Auto AVC control with on and off function for manual adjustments
• Water cooled TIG weld head, easy to change or adjust Tungsten
• Integrated wire feed for recessed, protuded or flush tube ends
• Buttons on handle for easy operation
• Uses localized guide for self-centering of welds 19-76mm OD
• Recommended power srouce OBT-315

Specification

Power Source Specification

Detailed Pictures

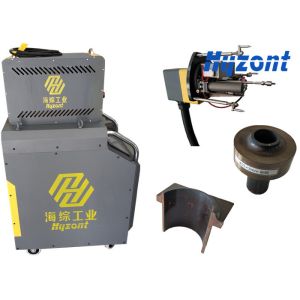

Protruding tube to Tubesheet Welding Machine



TTS-30 TIG welding Head of Tube to Tubesheet Welding Machine


OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine

Order information

Hyzont TTP-30 Tube to tubesheet Welding Machine Youtube Video Link:

https://www.youtube.com/watch?v=Zy2-DhXAMAc
